General
  • High Contrast Color Touch Screen
  • User Friendly Graphical Interface
  • 5 Programmable User Profiles
  • Scan Viewer Archiving Software
  • USB Interface
  • SD Memory Card
  • Built-In Thermal Printer
  • Storage Compartment
  • Portable Design Weighing 6 lbs (2.7kg)
  • Power Requirements: 100-240 VAC; 50/60 Hz
Specifications
  • Methods: Direct Contact/Immersion
  • Examination Modes: Cataract, Dense Cataract, Aphakic, Pseudophakic (5 settings) and 4-Gate Manual
  • Measurements: ACD, Lens, Vitreous, Axial, Average Axial and Standard Deviation
  • Individual Zone Velocities
  • Automatic Sensing Algorithm
  • Measure Review
  • Lens Calculations in 0.25D Increments
  • 10-Lens Database
  • Refractive Formulas; Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q and Haigis
  • Post-Refractive Formulas: Latkany Myopic, Latkany Hyperopi and Aramberri Double-K
Optional Features
  • Prager Shell
  • Soft touch probe

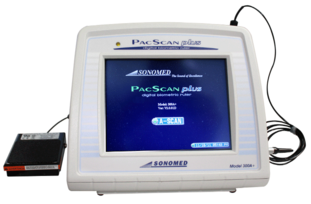

PacScan 300 Plus
With New Features in Digital Biometric Ruler

The PacScan Plus 300A+ offers a portable, digital A-scan , with a large color touch screen, on-board memory and USB interface for EMR archiving, extreme accuracy, repeatable measurements and reliability. The combination of a high frequency, low noise probe and fast precise algorithm enables scan capture immediately upon application of the probe along the visual axis.

The PacScan Plus A-Scan offers built-in immersion capabilities and up to nine IOL formulas, including three post-refractive formulas. Axial length, ACD, and lens thickness are provided for each scan. Group up to five scans with average axial length and standard deviation automatically calculated. Easily review each scan, delete outlying scans, and add new scans, as desired. Customizable tissue velocities of each structure and highly-developed automatic scan recognition algorithms ensure accurate and repeatable measures. Built-in calibration check ensures continued accuracy of system.300a

  • Large color touch screen operation
  • Complete measurement and calculation record within seconds
  • Ability to store up to five different user profiles
  • Portable, compact, and lightweight
  • On-board memory storage and USB interface
  • Built-in printer and probe storage


The PacScan Plus 300+ series offers extreme portability, with built-in printer and probe storage compartment, all in a compact and lightweight package. Printer allows for hardcopy record of scans, IOL calculations, and corneal maps. Data download and scan viewer software option also available to create permanent digital archive of scan results.

Two probe styles are available - standard or soft-touch - depending upon user preference and scanning application. Built-in immersion scanning capabilities is provided with optional Prager shell for ease of use and the highest assurance of accuracy and repeatability.
